Single ISO/API
HORIZONTAL CENTRIFUGAL PUMP MANUFACTURER
OPTIMEX offers three ranges of single-stage pumps:
-
- The CNSI range for industrial and chemical applications according to the manufacturer’s standard in compliance with ISO 15783 and ISO 2858,
- The ETEI range for more severe chemical applications, meeting our customers’ technical and documentation requirements and complying with ISO 15783 and ISO 2858,
- The PREI range has been designed in full compliance with API 685 standard as well as with customer expectations for their critical and severe applications.
Canned Motor Pump SINGLE Range

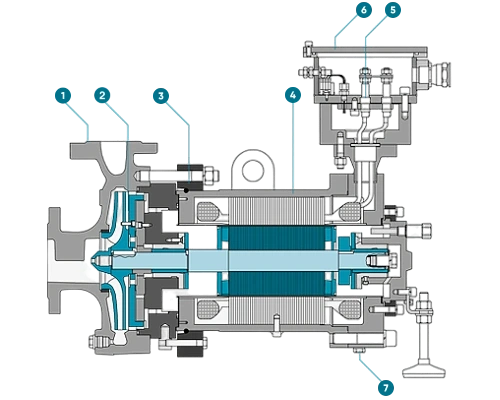

Photo legend:
1 Standard flanges.
2 Thrust balancing system BL+2.
3 Loose flange: allows adaptability between different motors and hydraulics of the ETEI and PREI Range.
4 Motor frame with same pressure design as the pump.
5 Leak proof feedthrough with same design pressure as the pump.
6 Terminal box: in “e” ATEX protection (if applicable).
7 Drainable second containment.
Standardized Chemical Pumps (CNSI)
CANNED MOTOR PUMP FOR CHEMICAL INDUSTRY
THE CNS RANGE MEETS THE REQUIREMENTS FOR ISO 15783 STANDARDISED CANNED MOTOR PUMPS
Based on the 5 most used ISO2858 dimensions, OPTIMEX offers a range of standardised pump for the chemical industry. This range is characterized by predefined specifications and a fixed list of options which enables a reduced and attractive lead time.
This range complies with the ISO15783 seal-less pumps standard and respects the chemical industry standard ISO2858.
CONSTRUCTION
- Construction according to
ISO 15783 - Pump casing according to
ISO 2858 - Flanges: PN16 according to
NF EN1092-1
MATERIAL
- Stainless steel (SS)
FUNCTIONNING AT
- Flow: Until 60m3/h
- Head: Until 60 m
- Frequency: 50 to 60 Hz
- Temperature: -135°C / 160°C
- Pressure design: Up to 16 bar
HAZARDOUS AREA
- Class temp T1 to T6
- Zone 1 to zone 2
- IECEx/ATEX marking
Download our CNSI brochure:
Request a quote for the CNSI pump range:
Chemical Pumps (ETEI)
CANNED MOTOR PUMP FOR CHEMICAL INDUSTRY
THE ETEI RANGE MEETS THE NEEDS IN SEALLESS CANNED MOTOR PUMP ISO 1573 STANDARDIZED CHEMICAL PUMPS.
In addition to the CNSI range, Optimex has developed a range of tailor-made pumps dedicated to the chemical industry which includes all ISO 2858 standard sizes.
OPTIMEX has first developed a range of products dedicated to the chemical industry in order to respond to its nearest customers’ needs for leak-proof and normalized pumps. The ETEI industrial pump range complies with the requirements in sealless pumps normalized ISO 15783 for the chemical industry. These canned motor pumps are widely used for new units constructions, as well as for an alternative for safer or more reliable machines.
CONSTRUCTION
- Construction according to
ISO 15783 - Pump casing according to
ISO 2858 - Flanges: PN16 according to
NF EN1092-1 or #150 acording to ASME B16.5
MATERIAL
- Stainless steel (SS)
- Duplex (Uranus U55)
FUNCTIONNING AT
- Flow: Until 500 m3/h
- Head: Until 150 m
- Frequency: 50 to 60 Hz
- Temperature: -135°C / 350°C
- Pressure design: Up to 20 bar
HAZARDOUS AREA
- Class temp T1 to T6
- Zone 1 to zone 2
- IECEx/ATEX/UL/CSA/CCC marking
Download our ETEI brochure:
Request a quote for the ETEI pump range:
Petroleum Pumps (PREI)
CANNED MOTOR PUMP FOR OIL AND GAS INDUSTRIES
The growing demand for reliable and safer operating pumps in the Oil & Gas industry gave OPTIMEX the opportunity to develop its own range of single stage Canned Motor Pumps adapted to this field. This was well coordinated with the emergence of the API 685 exclusively dedicated to seal less pumps. This is how the industrial centrifugal PREI pump range has been designed in full compliance with this API standard as well as with customer expectations for their critical and severe applications.
CONSTRUCTION
- Construction according to
API685 - Flanges: #300 according to ASME B16.5, PN40 according to NF EN1092-1
MATERIAL
- Code API S5, S6, S8, A8, D1
- Other materials on demand
FUNCTIONNING AT
- Flow: Until 500 m3/h
- Head: Until 150 m
- Frequency: 50 to 60 Hz
- Temperature: -135°C / 350°C
- Pressure design: Up to 50 bar
HAZARDOUS AREA
- Class temp T1 to T6
- Zone 1 to zone 2
- IECEx/ATEX/UL/CSA/CCC marking
