Monobloc Pumps

MANUFACTURER OF MONOBLOC MAGNETIC DRIVE CENTRIFUGAL PUMP

Magnetic drive pumps has been developed for use in severe applications and provides a very high level of safety due to its seal-less design. Monobloc pump is compact arrangement and no limnent to install the pump and motor.

CONSTRUCTION

  • Construction: According to ISO 15783
  • Pump casing: According to ISO 2858
  • Flanges: PN16 according to NF EN1092-1

MATERIAL

  • Stainless steel (SS)

FUNCTIONNING AT

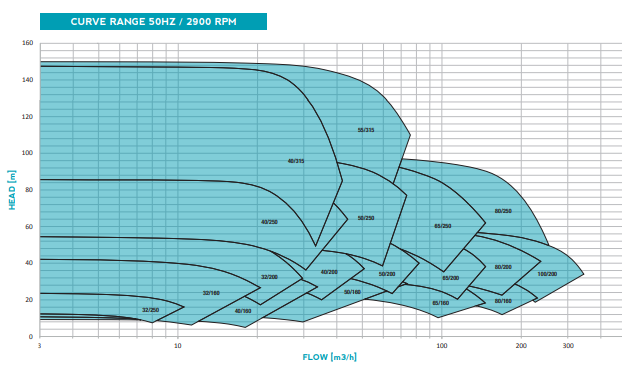

  • Flow: Up to 300 m3/h
  • Head: Up to 140 m
  • Frequency: 50Hz/60Hz
  • Pumping temperature: -120°C / 140°C
  • Pressure design: Up to 16 bar

HAZARDOUS AREA

  • Class temp T1 to T6
  • Zone 1 to zone 2
  • IECEx/ATEX/UL/CSA/CCC marking

Magnetic Drive Pump MONOBLOC Range

Manufacturer of monobloc magnetic drive pumps

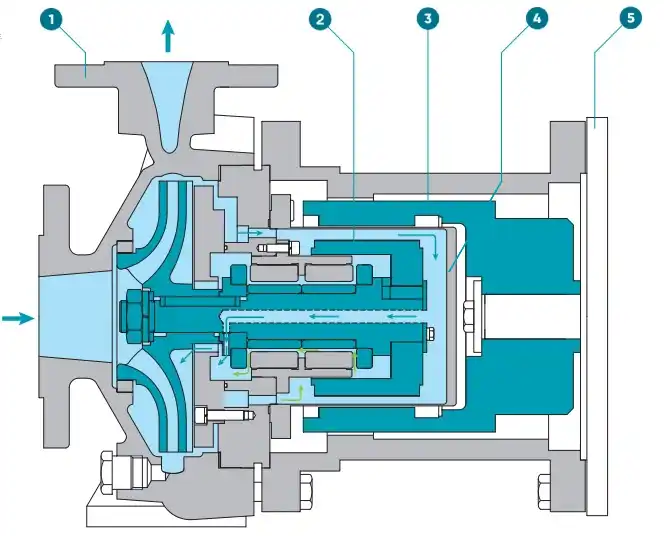

Photo legend:

1 Pump casing with flanges according to EN 1092-1, PN16 RF.

2 Magnetic coupling, driven part.

3 Magnetic coupling, driving part.

4 Shroud.

5 Connection with standard electrical motor.
