A leading chemical production facility needed a high-pressure pump for handling hydrogen-containing products at 20°C. The production site operates under strict safety standards, processing a wide range of chemical products, including ammonia and fertilizers.

The challenges included:

• High suction pressure: 92 bar
• Safe operation in hazardous zones (Zone 2).
• Compliance with strict industry regulations (ATEX, PED).
• Reliable performance for continuous production.

Fabrication Number: BF2156 – BF2161
Name of the Pump: PREI-A 150/26 HpIn_P150F2
User Industry: Chemical Plant, Germany
Pumped Fluid: Chemical Product with 10% Hydrogen
Design Conditions: 117 barg at 120°C
Pump Working at: 386 m3/hr at 80 m

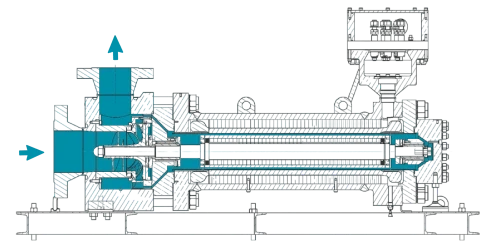

Optimex complies a tailormade solution for client’s needs in centrifugal high pressure pump, offering:

• Monoblock design for high pressure construction and safety operation.
• Canned motor technology for leak-free operation.
• Single Stage Construction according to EN 13445 standards.
• Compliance with the Hazardous Environment
• Directive (ATEX), and Pressure Equipment Directive (PED).
• Temperature resistance from -20°C to 120°C.

The OPTIMEX Pumps delivered:

• High pressure construction compliance to PED.
• Full compliance with industry standards.
• Reliable, long-term performance with minimal downtime (good MTBF).
• Reduced maintenance and operational costs.
