Liquids with Gas or Solids Contents

MANUFACTURER OF CANNED MOTOR PUMP FOR LIQUID WITH GAS OR SOLIDS CONTENTS

Transfer of medium containing gas, solids or crystallizing/polymerizing liquid need to be taken with precautions to avoid irreversible damage on the internal parts of the pump.

PUMPING RESTRICTIONS:

• To protect the bearings from particles, Optimex has specific circulations with tangential filter or injection of clean liquid in the motor part.
• Heating jackets can be installed to maintain the liquid at temperature out of point of crystallization/polymerization.
• Depending on the gas concentration, OPTIMEX will select a suitable circulation to protect the pump. It may be necessary to install special bearings or accessory on the impeller.

OPTIMEX SOLUTIONS:

Depending on the gas concentration, OPTIMEX will select a suitable circulation to protect the pump. It may be necessary to install an adapted equipment for the operating conditions, such as special bearings or an impeller.

• Presence of solids can block the cooling circulation and lead to dry running which destroys the bearings
• Presence of gas generates cavitation which rapidly degrades the mechanical parts of the pump

Examples of high gas content liquids:

Hydrogen (H)
Nitrogen (N)

Examples of polymezation/crystallization process:

Maleic acid
Nylon salt
Pyrocatechine
Phenol
Adipic acid

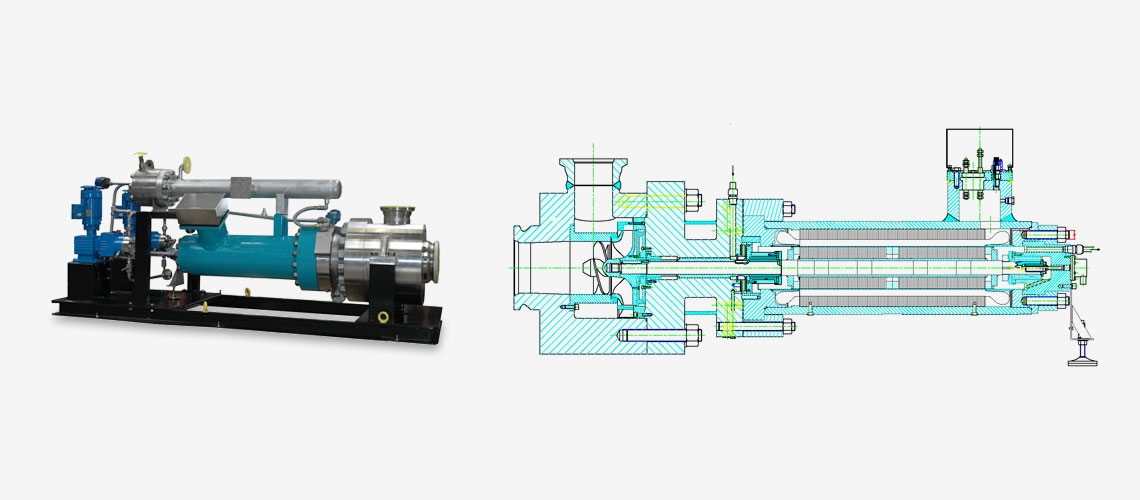

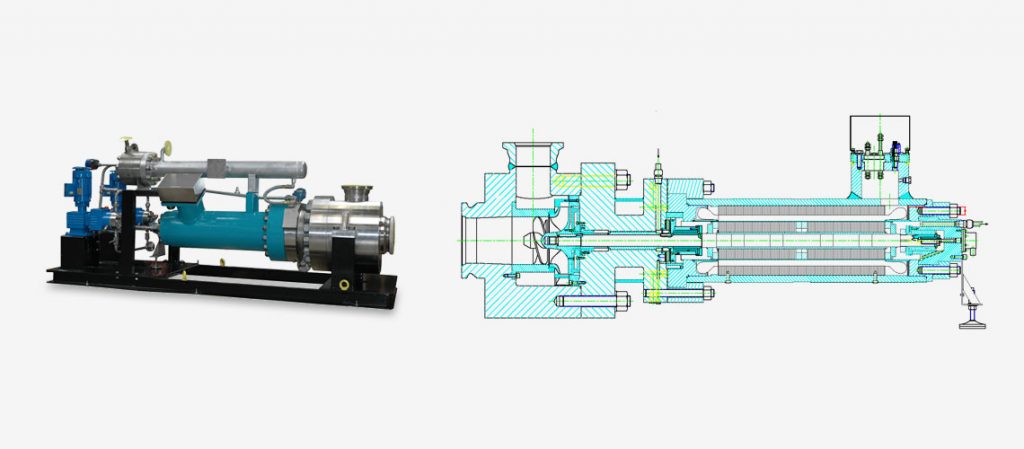

SINGLESTAGE HIGH PRESSURE PUMP WITH 10%
OF GAS CONTENT

Industrial pump manufacturing, Canned motor pump high gas content

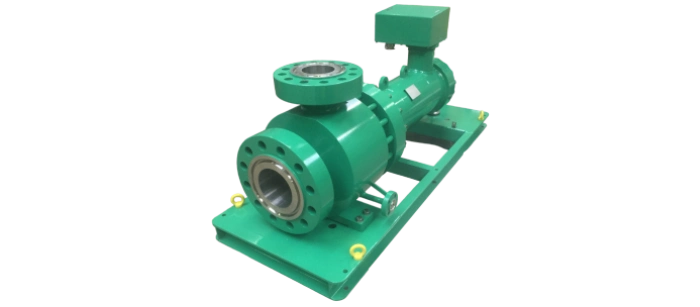

CENTRIFUGAL HIGH PRESSURE PUMP BF1237-1238-1239,
FOR HYDROGEN AT 70°C

Centrifugal high pressure pump for product with hydrogen content

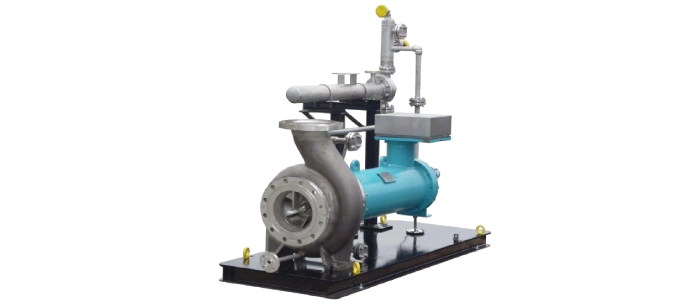

SINGLESTAGE PUMP WITH INJECTION SYSTEM BF899
FOR ADAME WITH OTHER CHEMICAL COMPONENTS AT 115°C

Singlestage pump with injection system for adame

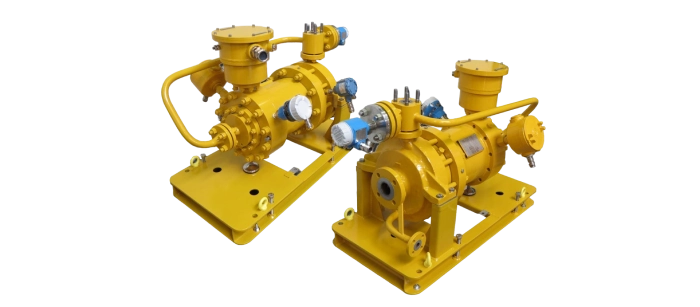

SINGLESTAGE PUMP EQUIPPED OF TANGENTIAL FILTER
BF921-BF922 FOR RICHE AMINE AT 60°C

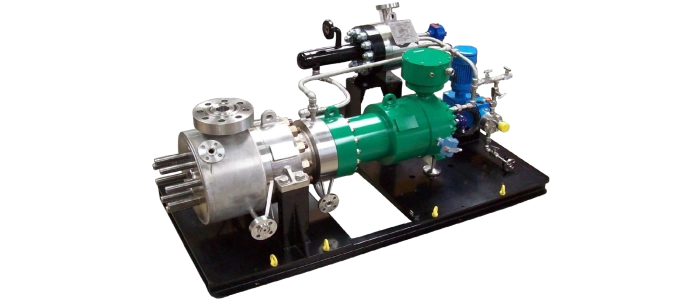

MULTI-STAGES PUMP WITH HIGH PRESSURE
+ HIGH SOLIDS CONTENT BF849 FOR RESIN C10’S AT 340°C

Multi-stages pump with high pressure and high solids content for resin
